This is a project we completed in June 2021 – Comprising of a complete re-roof of the existing dwelling with additional Velux style windows, and an additional roof to the new 2 storey extension. As can be seen the existing front projections were completed in the clients selected plain tile style adding a visual interest to the overall design.
ext1

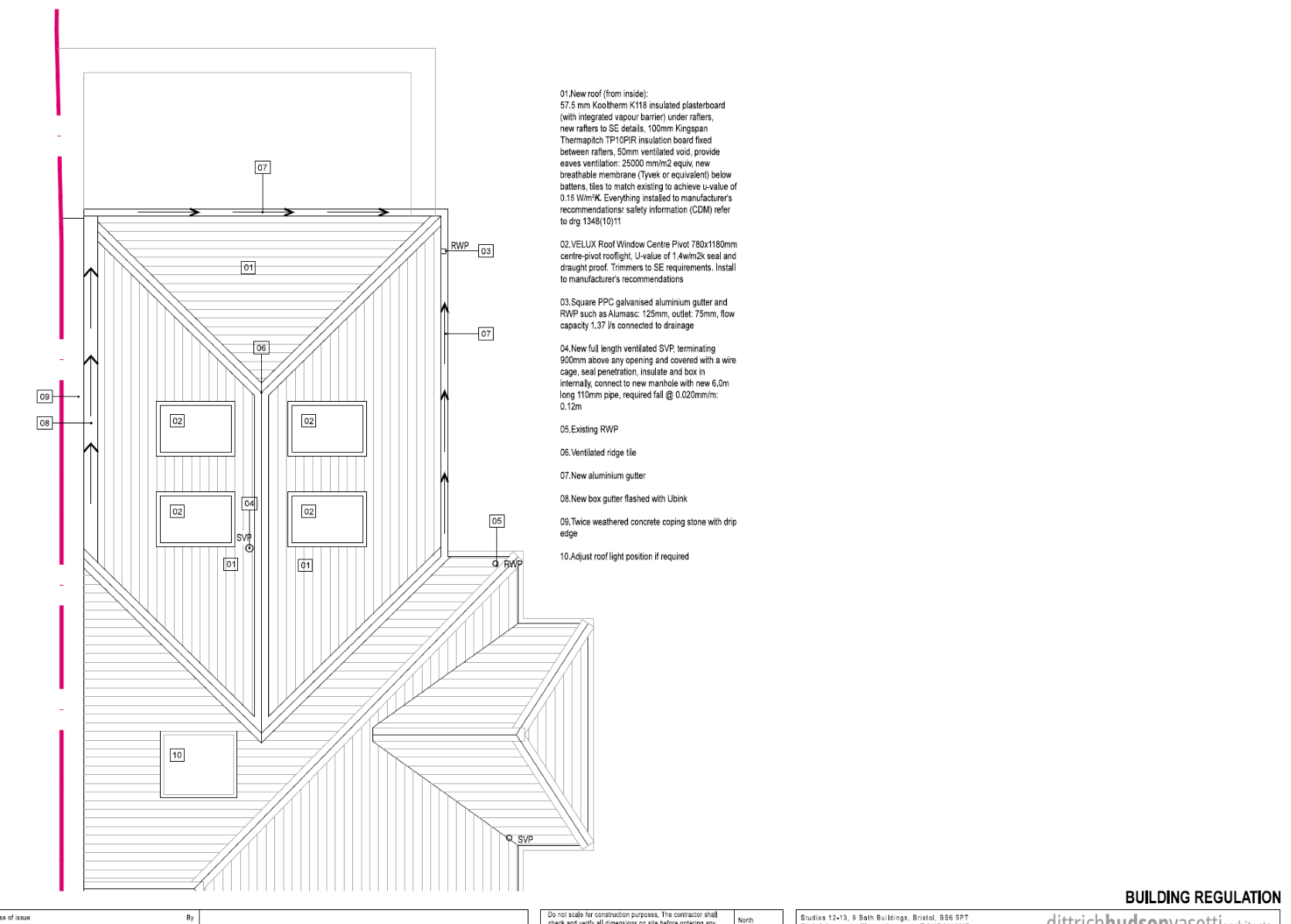

Architect Drawings
ext2

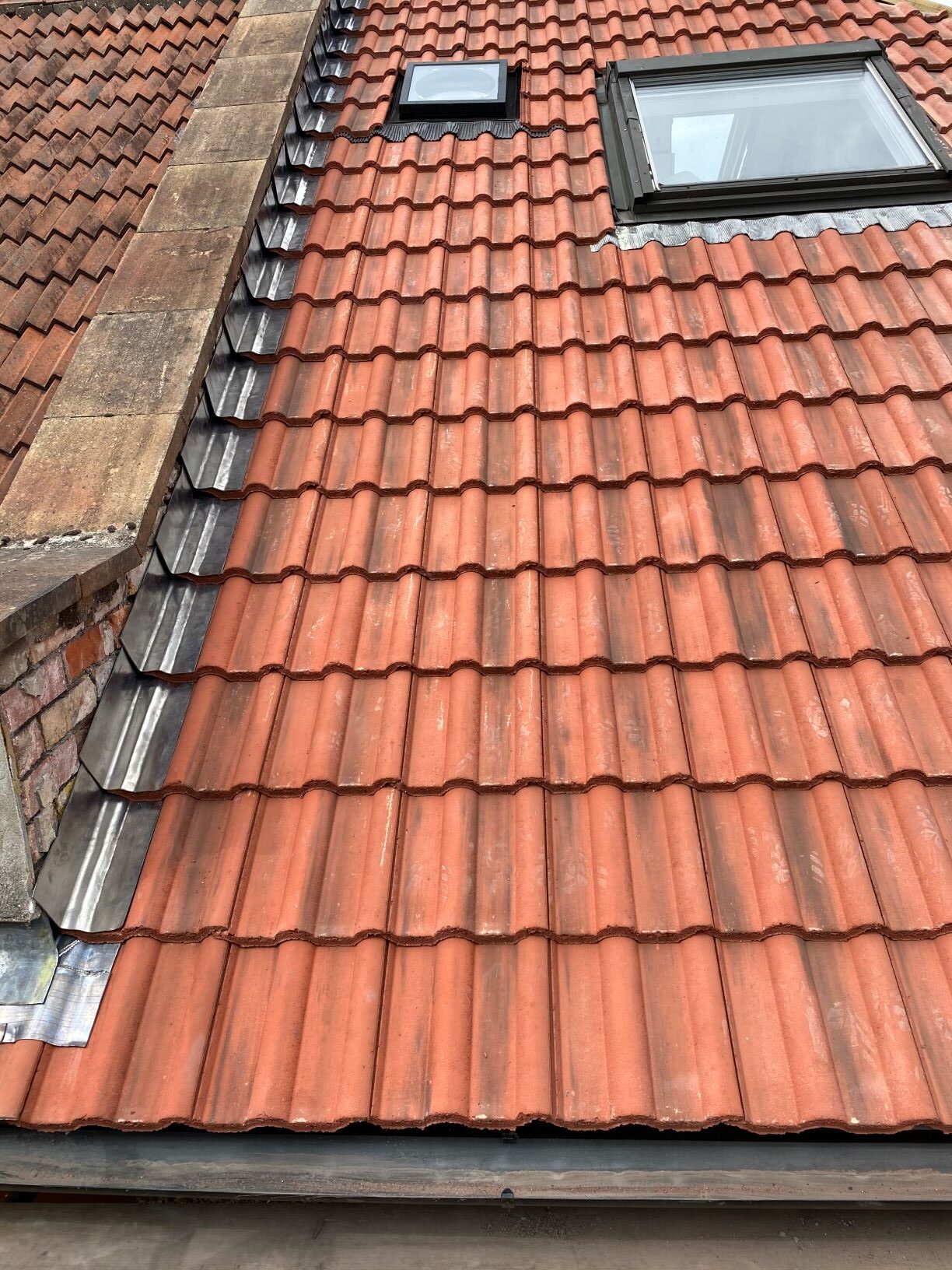

Parapet Party Wall Showing Lead Upstand Detail
ext3
Battening Detail
ext4
Roman Elevation Completion
ext5
Plain Tile Detail to Existing Elevation With Accurate Cuts Prior To Cleaning
ext6

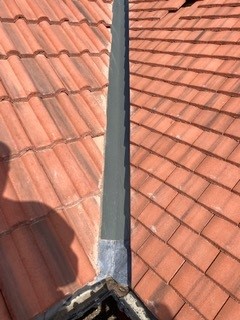

Valley Detail
ext7
Plain and Roman Tile Valley Intersection
ext8

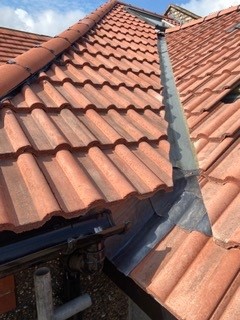

Lead Valley, Hips, Plain and Roman Tiles Interface
ext9
Extension With Velux Detail
ext10

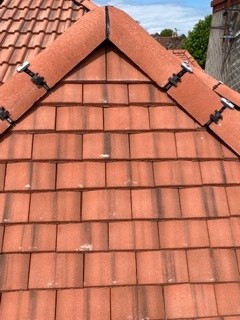

Plain Tile Detail With Hips Fitted
ext11
Extension Showing Intersection Valley and New Velux Detail
ext12

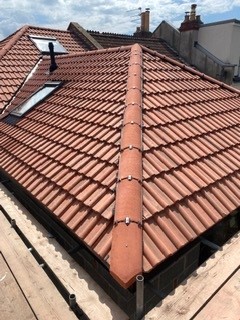

Completed Hips Detail
